Hydraulic cylinders that are small enough to be used on a scale excavator are hard to come by. So I am going to list
off the few places where you can find them.
Hydraulic Cylinders
|
|
|
This model has a pump and a distribution block thats controlled by mini servos. Leimbach is a small
company in Germany that builds r/c hydraulic excavators and they make all of these components. They can be purchased seperatly
but are expensive. An alternative to Leimbach hydraulic cylinders are the clippard 9/16 bore hydraulic cylinders. They
go for no more than $20.00 each. Thats alot better than $100.00 but the clippards are about 3/4" longer.
|
|
|
|
|
|
|
Hyd. Cyl. 16mm Bore, 100mm Stroke, (1 Needed for Stick)
|
$106.00
|
|
Hyd. Cyl. 16mm Bore, 75mm Stroke, (2 for the Boom and 1 for the Bucket)
|
$104.00 Each
|
|
3 Mini Servos
|
$20.00 Each
|
|
6CH GWS Transmitter
|
$83.00
|
|
3 12 Volt Motors (10 to 12rpm)
|
$25.00
|
|
Total
|
$1139.00
|
|

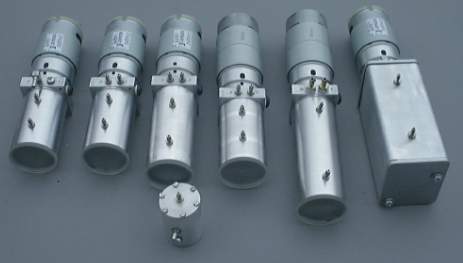

| 12 Volt Pump |
|

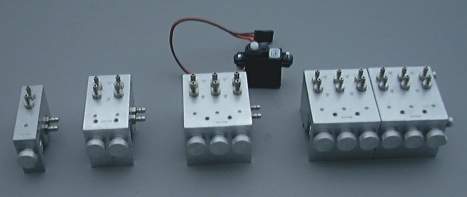

| Control Valve |
|

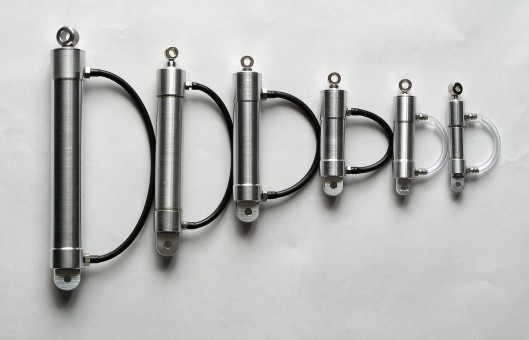

| Leimbach Hydraulic Cylinders |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
